BESS for Construction Power Solutions
Complete Sustainable, Reliable Low-Carbon Power Solution for Construction Sites
Power is the lifeline of every construction site. While diesel generators have long been the go-to option for temporary power, their high fuel costs, noise, and carbon emissions are no longer sustainable.

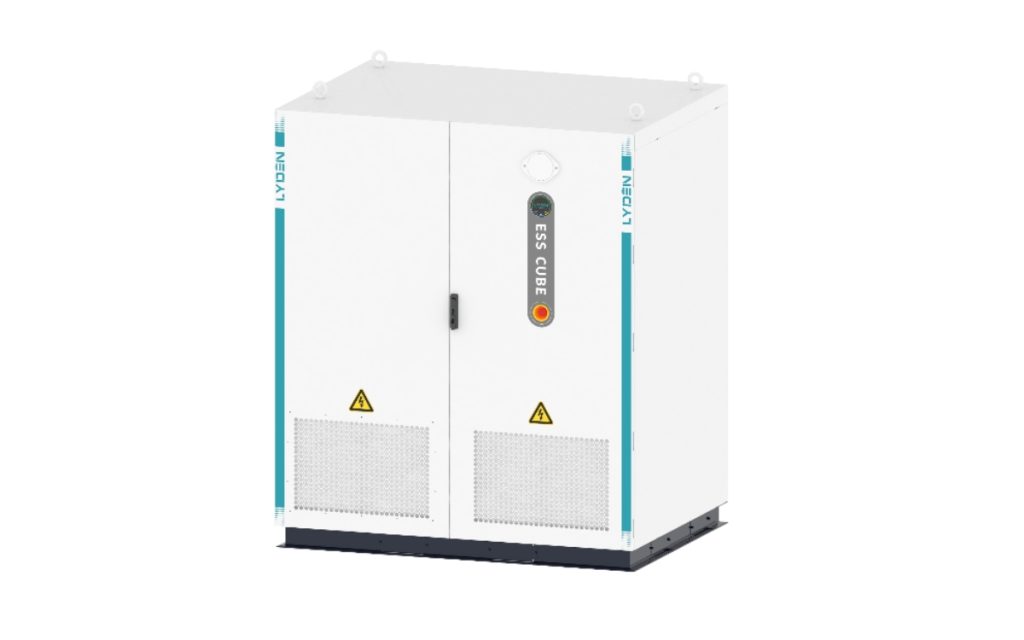

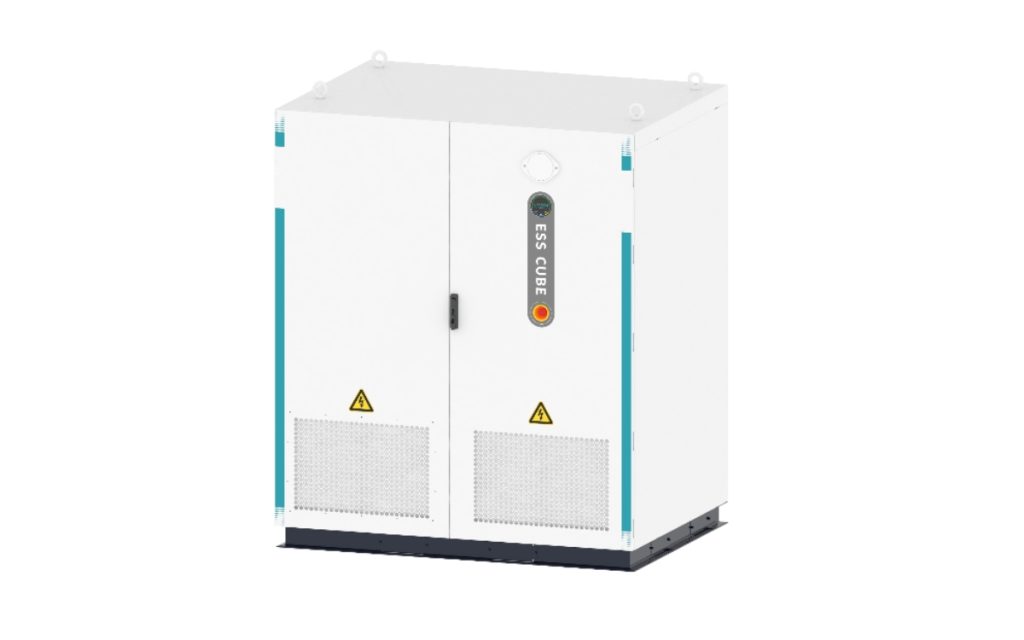

Our Energy Storage Power Amplification Cabinet is a purpose-built construction battery solution and a mobile BESS for construction sites. It provides zero-emission, low-noise, and high-reliability power — reducing operational costs while enabling contractors to meet green building and ESG goals.
Key Features
- High Output: Up to 500 kW output to power cranes, piling rigs, and concrete plants
- Flexible Integration: Works with both grid and diesel generators, seamless on/off-grid switching
- Green & Low-Carbon: Zero emissions, low noise, fully compliant with sustainable construction standards
- Safety First: IP55 protection, full electrical safeguards, FK-5-1-12 fire suppression system
- Smart Operation: Remote monitoring, proactive alerts, preventive maintenance
- Global Compliance: Certified with UL1973, UL9540A, IEC62619 for worldwide use
How It Works & Applications
- Construction Sites: Tower cranes, piling machines, batching plants, site offices & camps
- Diesel Generator Replacement: Reduce diesel runtime by over 50%
- Mobile BESS Deployment: Plug-and-play, fast installation, ideal for temporary power

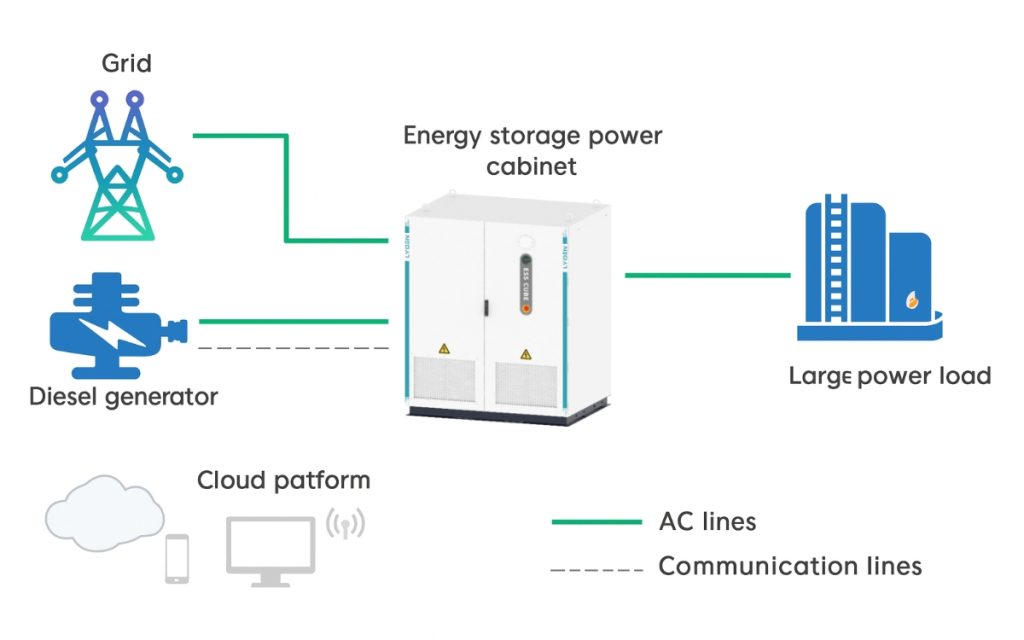

System Diagram
Technical Specifications
| Item | L522-A |
|---|---|
| Maximum Battery Capacity | 522.496 kWh |
| AC Input | |
| Power | 0~125 kW (Diesel generator / Grid) |
| Rated Voltage | 400 Vac, 3W+N+PE |
| Rated Frequency | 50/60 Hz |
| AC Output | |
| Power | 0~500 kW |
| Rated Voltage | 400 Vac, 3W+N+PE |
| DC Side | |
| Battery Voltage Range | 715~923 Vdc |
| DC Voltage Range | 650~950 Vdc |
| System Parameters | |
| Cell Cycle Life | 8000 cycles @25℃, 0.5CP, 95%DOD, ≥70%EOL |
| BMS Solution | Bi-directional active balancing |
| Protection Functions | Anti-islanding, overcurrent, short-circuit, reverse polarity, surge protection, etc. |
| Communication Interfaces | RS485 / CAN / Ethernet / MQTT |
| Thermal Management | Intelligent air-liquid cooling |
| Fire Protection | Fire detection tube + Gas/Smoke/Temperature detection + FK-5-1-12 |
| Isolation Method | Non-isolated |
| Altitude | ≤4000 m (derating above 3000 m) |
| Operating Temperature | -20℃ ~ +55℃ |
| Protection Grade | IP55 |
| Weight | 5 T |
| Dimensions (W×D×H) | 2400×1250×2000 mm |
| Certifications | GB/T36276, GB/T34131, UL1973, UL9540A, IEC62619, UN38.3 |
| Grid Standards | GB/T 29319, G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
